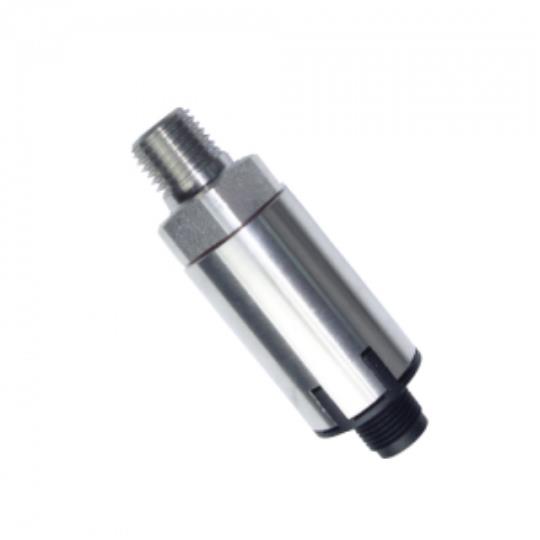

Pressure Transmitter

جستجو در مطالب سایت

سایر محصولات

آخرین مطالب

اندازه گیری فشار > ترانسمیتر فشار > Pressure Transmitter

Measuring range Absolute:0~25bar Relative:-1~600bar Output 4-20mA, 0-5V, 1-6V, 0-10V, ratiom.10-90% Signal Connection 2-wire / 3-wire Linearity Accuracy < ±0.3%fs Rupture pressure 2.5-3xfs Electrical connection Cable 1.5 m Swift connector AMP M12 DIN EN 175301-803-C (mini-DIN) Protection Degree IP65 / IP67 Material of Case Stainless steel Pressure connection Outside thread Inside thread Weight Version with outside thread:85g Version with inside thread:95g
